David Clark
U9100 Digital intercom system

DanteTM AES67 audio standard ease integration to any digital audio device over IP providing studio level audio experience.


Wireless intercom extension support remote user access to all integrated radio communication.


Unlimited number of users. Configured user groups and access.

DanteTM premium audio with customer environment specific DSP tuning confirm intercom speech clarity and balance. Passive dynamic noise cancelling microphone with add-on system digital ANC and 3-step microphone band-pass / notch filtering block any engine noise from the background.

Wired ethernet AES67 standard communication provide compatibility and audio quality. Wireless user extension with 24 hours operating time, four-slot charging on board. All fixed intercom controls may be remotely operated by the wireless end-user. Optional Bluetooth interface for mobile phone integration.

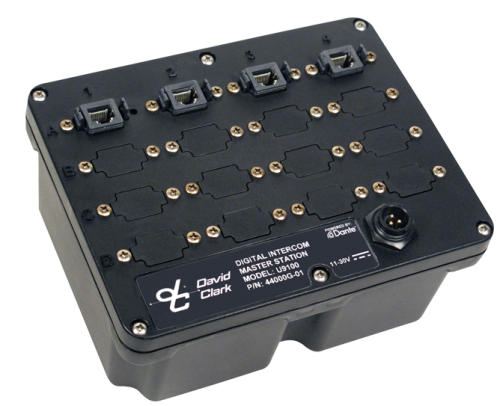

Plug-and-play with any AES67 audio device over the ethernet. Standard RJ-45 connection points and galvanic isolated analog audio ports. Balanced and/or unbalanced, 600ohm impedance. Third-party Audinate Dante device may be configured by intercom user interface.

Cushioned ear cups are removable and changeable providing up to -32dB attenuation. IP-68 rated. Simple and robust user interface. VOX speech channel activation to support hands-free professional operation.

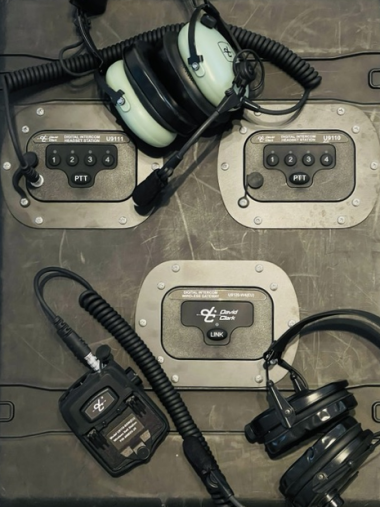

Four speech group selection. DanteTM matrix configuration for individual user, audio routing and user access to radios. All system controls on fix-mount Headset Station and on carry-on Belt Station unit. Wireless remote use of all peripherals and radios. Galvanic isolated radio and AUX interfaces, balanced and/or unbalanced with Push-to-Talk function.

Wireless
Communication

Wireless
Communication

Noise
Cancellation

Noise
Cancellation

24h
Operation

24h

Operation


Premium
Sound

Premium

Sound

MOTOROLA
     Land Mobile Radio solutions

Network Routing
         RF components
UHF/VHF & LTE Radios
      Accessories

"This is so far best system we have integrated"


     "I wish to find this system before"

"This is so far best system we have integrated"

     "I wish to find this system before"

RHIB boat builder

     Professional user

RHIB boat builder

     Professional user

RHIB boat builder

     Professional user

Request for information and quotation
